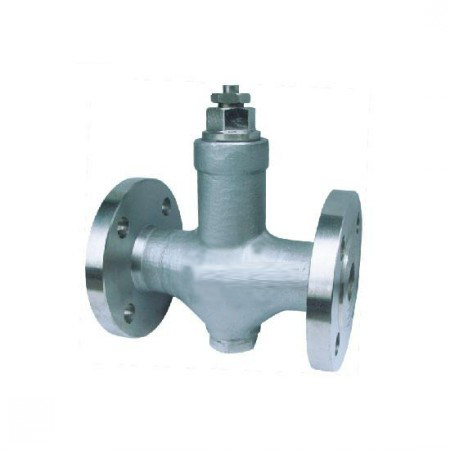

Flanged-Bellow-Type-Steam-Trap-STC-16-

Bellow Type Steam Trap

Product Description

It is widely applied in the heating equipment, By taking full advantages of thermal energy, it can be especially applicable for steam thermal pipeline..

Structure Characteristics:

  1. Metal bellow elastic cell can be self-adjusted between 65-110. Discharge capacity can also be manually adjusted.
  2. It can exhaust air automatically without any block. Fluctuation of pressure will not affect the normal operation of steam trap.
  3. All the internal parts are made of stainless steel, with strong anticorrosion and long life service life.
  4. It has several types, such as straight type, angle type. Its connection type can be flanged, NPT or SW. With small size and convenient installation, it can be installed in any angle.

Specification:

Material: WCB, F304, F316
Class: 150 – 300lbs , PN16-PN40
Size: 1/2” – 6″ (Flanged / NPT / SW / BW)
End flange: ANSI B16.5
Certification: ISO9001, API 6D, and CE
